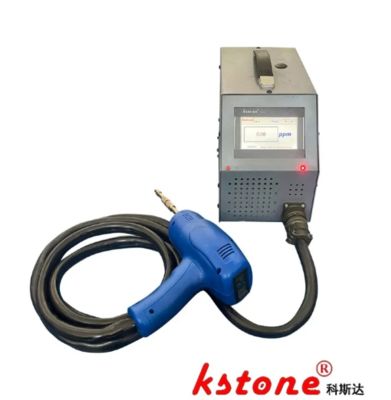

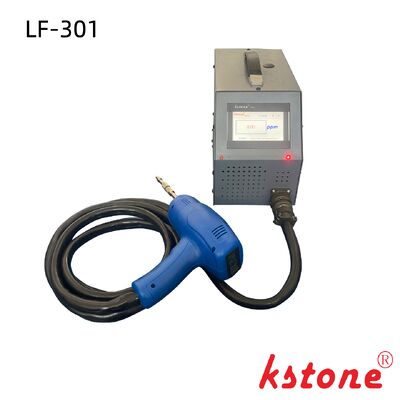

SF6 Leakage Detector, 0.01ppm Quantification, ≤0.5s Response, External Lithium Battery Support, Low Maintenance Cost [LF-301]

Measurement Range

0.01ppm - 10000ppm(v)

Measurement Accuracy

0.01ppm(v)

Minimum Resolution

0.01ppm(v)

Recovery Time from "Poisoning"

≤10 seconds in an environment of 99.99% SF6
1 second in an environment of 10% SF6

Response Time

≤0.5 seconds for 10ppm
≤1 second for 1ppm

Indication Method

Direct display of ppm on the touch screen with a resolution of 0.01ppm; for example, 99.99ppm
LCD digital display of the detector: The higher the leakage concentration, the greater the digital change;
Buzzer prompt: The higher the leakage concentration, the greater the sound frequency change of the buzzer

Gas and Electric Integrated Hose of the Detector

Standard length is 3 meters (Can be customized as required, up to 10 meters)

Power Input Cable

2 meters

Input Power

220V±22V 50Hz±2Hz (External lithium battery inverter power supply is available)

Ambient Temperature

5℃ - 45℃

Ambient Humidity

≤85%

Power

≤100W

Net Weight of the Whole Machine

Detector: 1.2Kg
Main unit: 7Kg

External Dimensions of the Main Unit

310×168×200mm

Outer Packaging

Aluminum alloy anti-collision box

Gross Weight

12Kg

External Dimensions of the Aluminum Alloy Box

370*320*270mm
